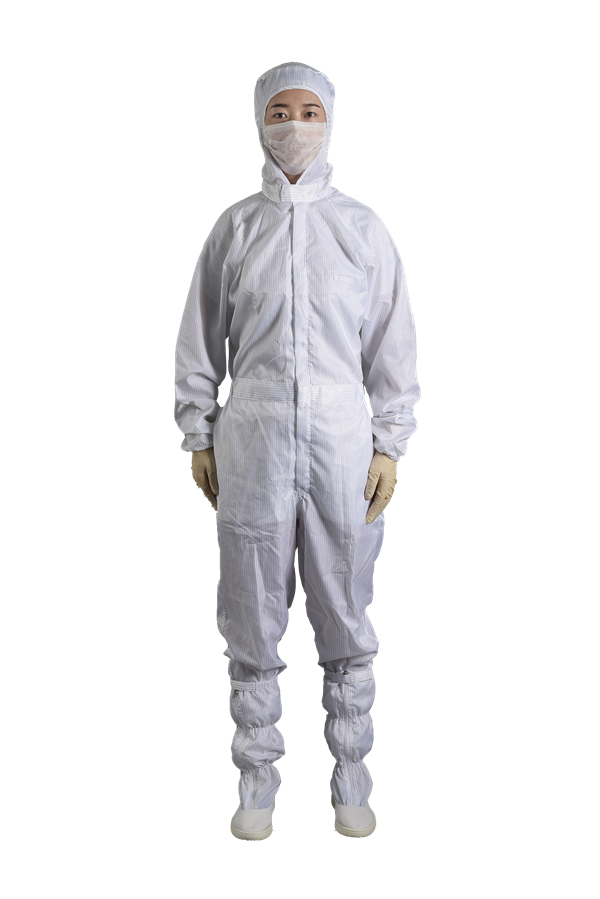

Cleanroom Coverall ESD Suit Garment Lab Coats Working Clothes
Product description
1. ESD clothing made of anti-static and dedicated clean room used fabric. Antistatic ESD clothing provides high efficient and permanent anti-ESD and anti-dust function, is thin/slip and clear weave grain.

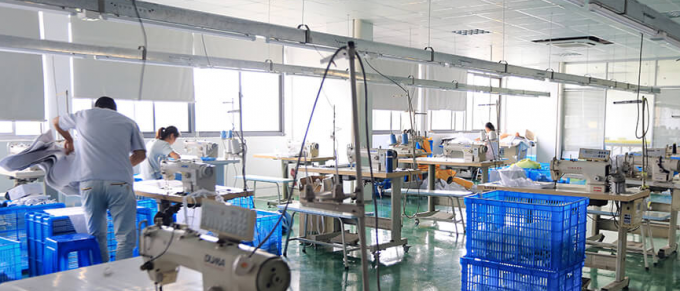

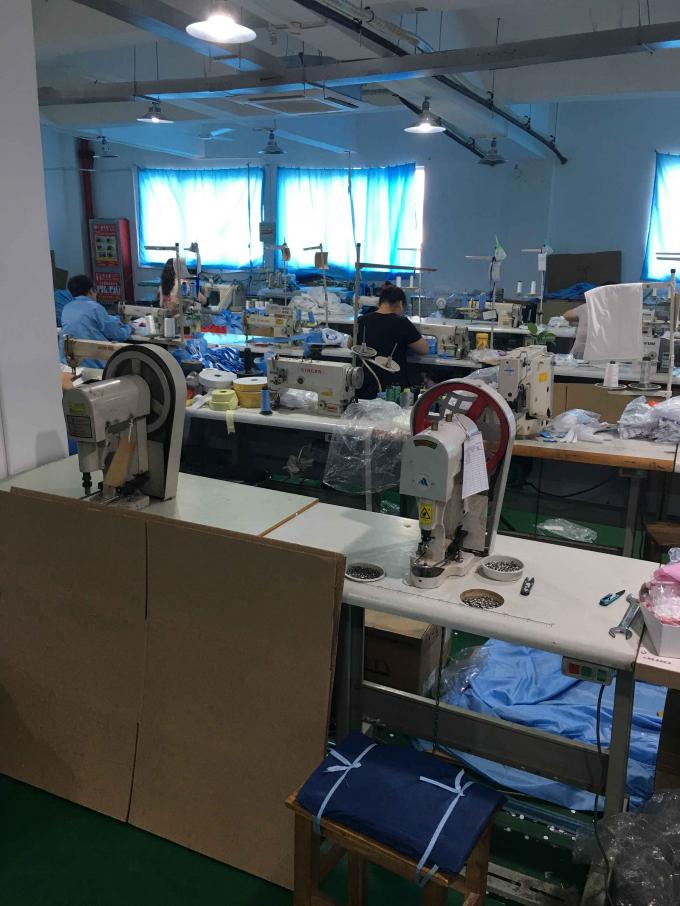

2. To effectively reduce particle generation, dedicated special sewing machine is used in sewing process.
3. Use conductive fabric and ensure electric connect among each part of cloth
4. Applicable to anti-ESD workshop.
5. Products has passed SGS test for RoHS compliance.
6. Material: 100% polyester filament fiber + conductive fiber.
7. Applicable to clean room grade: class 100,000, class 10,000, class 1000, class100
Product specification
| Size | Suitable for height | Suitable for the chest |
| XS | 150-156 | 74-84 |
| S | 156-162 | 78-88 |
| M | 162-168 | 82-92 |
| L | 168-174 | 86-96 |
| XL | 174-180 | 90-100 |
| XXL | 180-186 | 94-104 |
| 3XL | 186-192 | 98-108 |
Features
1. Surface resistivity: 1x105-109 Ω
2. Friction voltage: less than 100V (special mesh)
3. Electrostatic dissipation time: 500V reduced to 500V less than 0.1 S
4. The dynamic dust volume (= 0.5 mu m) is less than or equal to 500ea/ft3 CLASS100 ~ 1000
Apecification field
1. Magnetic head
2. Semiconductor
3. Liquid crystal, medical
4. Computer peripheral manufacturing industry
